Commercial Heat Pumps - Air to Water 10-200kW
Thermal IQ’s range of heat pumps are designed and manufactured in Australia for both local and
international markets. Thermal IQ’s manufacturing resources have over 5 decades of experience
in manufacturing heat pumps and refrigeration products.
All Thermal IQ’s heat pumps are manufactured from the highest quality components supplied from the industry’s leading suppliers and are designed for high efficiency and low maintenance.
Heat Pump Applications
Heat pumps are designed to circulate water a produce hot water for a variety of application – capturing
heat from the air they are an extremely efficient method of pricing hot water via a water pump.
Hotel
Food Preparation
Medical
Swimming pools
Process heating
Features
These are supplied with – as standard
• Suitable for indoor or outdoor installation
• Rugged stainless-steel construction
• Components sourced from the industry’s leading suppliers
• R134a refrigerant for high ambient temperature operation and the lowest GWP of all
contemporary refrigerants
• Integrated circulation pump
• Comprehensive 12 months warranty on all parts and labour
• Highly accurate electronic controller
• 316SS plate heat exchanger evaporator
• Comprehensive factory testing before dispatch
• Evaporator protection on all models
• Gold fin protection on the evaporator
Evaporator Coating
All Thermal IQ’s evaporators are coated in Blygold PoluAI XT-MB which is a special corrosion protection coating for cooling coils and evaporators. The coating shields vulnerable metals from aggressive environments. The aluminum content in the coating provides the necessary heat conductivity to ensure the that coated heat exchangers have optimum heat transfer capacity.
Special additives ensure the applied coating film is bacterial and fungi resistant. After treating evaporators or cooling coils these articles should be considered “treated articles” and be marked as such.
✓ Corrosion resistant
✓ Microorganism resistant
✓ Heat conductive
✓ 11000 hours salt spray test
✓ Nano free
✓ Treated article
The coating is compliant to
✓ ASTM B117 – 11000 hours salt spray test
✓ ASTM G85 A1 – 4000+ hours acid salt spray test
Options
• Double wall condenser
• Coaxial condenser
• Shell and tube condenser
• Low noise fans
• Modbus high level interface connectivity
• PLC controller with HMI
• Side air exhaust
• Variable speed compressor with inverter

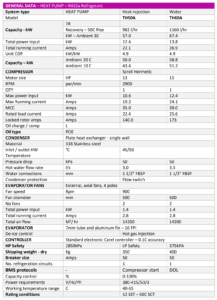

Below is the general technical data on the units to 100kW.
Thermal IQ I able to manufacture units to 300kW of heating.
When a unit is quoted, the quote will be supplied with a technical data sheet based on thecustomer requirements.
All operational heating capacity, power consumption and current draw data shown above is based on the heat pump operating at the limit of its design and is intended to be an indication only.
Each unit will be individually designed to customer requirements and a detailed product specification will be supplied at time of order including installation instructions and dimensions. The power consumed by the unit and the current it will draw vary depending on how the unit is constructed. The unit’s performance may also vary slightly from the figures above again based on customer requirements.
Thermal IQ’s product range is subject to change without notice.
